hi,
i have a toroid in a device that runs of USA power. Sometimes there is a
way to cut the primary/secondary windings and reconfigure but this doesn’t
have it. So, i think i need to replace it for 240v. Anyone know about this?
Got a picture and specifications of the toroidal transformer?
It should be possible to run the toroidal TX on UK mains with 230V on the
primary, the problem is the secondary will be producing (double) too much
voltage for the rest of the circuit. What is the secondary voltage and
current?
It might be better to replace that toroid with one that meets your
requirements more closely. My advice, flog the US toroid on EBAY and use
the proceeds to buy what yóú need.
AlexOn 15 June 2015 at 13:34, Raj Patel rajahpatel@googlemail.com wrote:
hi,
i have a toroid in a device that runs of USA power. Sometimes there is a
way to cut the primary/secondary windings and reconfigure but this doesn’t
have it. So, i think i need to replace it for 240v. Anyone know about this?–
You received this message because you are subscribed to the Google Groups
"Hackspace Manchester" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.
ok,
i don’t know specs for sure. there is a service manual but its for a
slightly different unit, ironically that unit can have its power rating
changed.

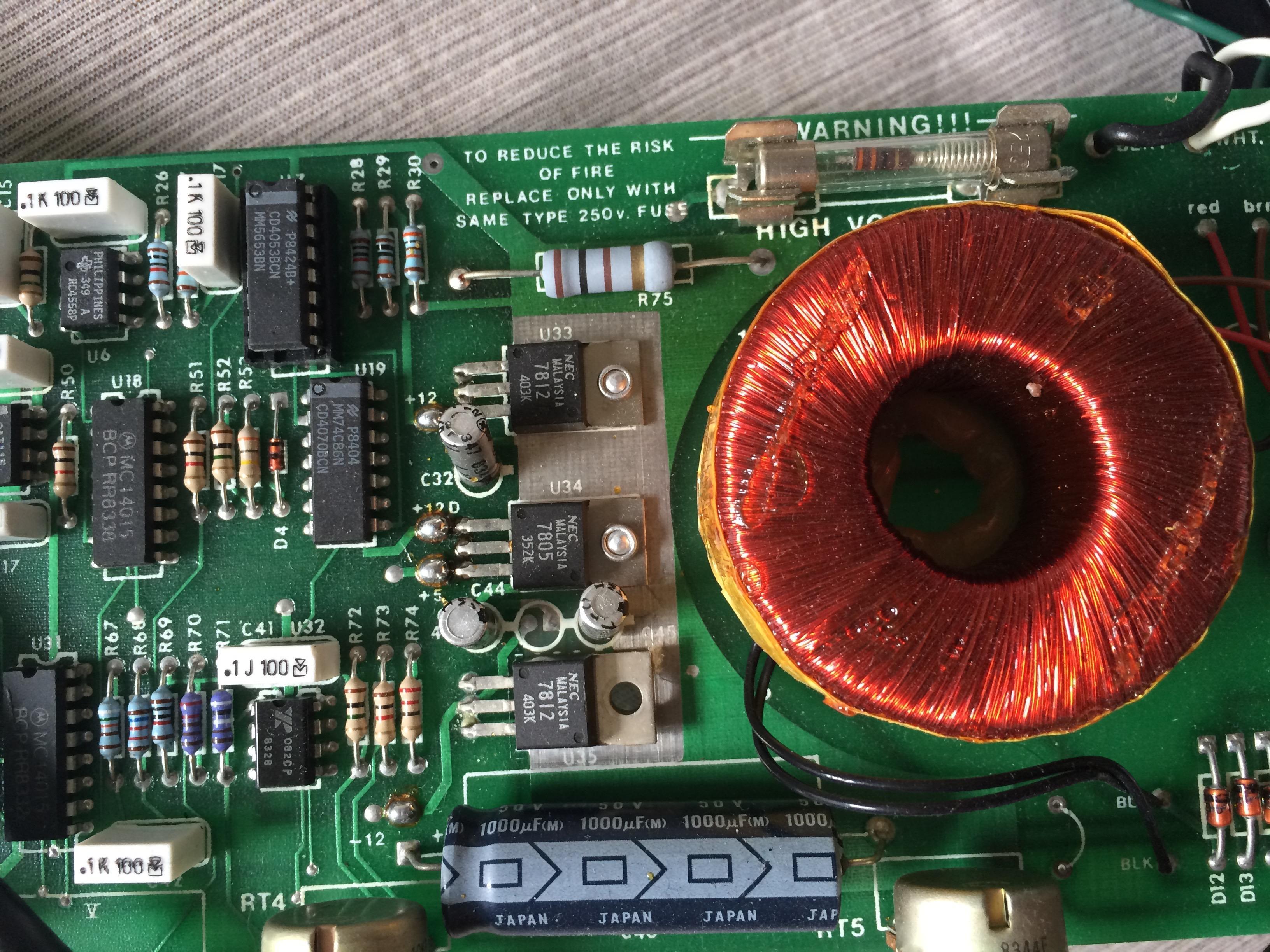

toroid runs to three LDO regs 7805 for ttl and 2x 7812 for audio. as you
can see someone has over volted this at some point and there are some
raised traces.
Can i surmise the spec? its pretty low powered and imagine no more than 30wOn Monday, 15 June 2015 14:27:38 UTC+1, Alexander Lang wrote:
Got a picture and specifications of the toroidal transformer?
It should be possible to run the toroidal TX on UK mains with 230V on the
primary, the problem is the secondary will be producing (double) too much
voltage for the rest of the circuit. What is the secondary voltage and
current?It might be better to replace that toroid with one that meets your
requirements more closely. My advice, flog the US toroid on EBAY and use
the proceeds to buy what yóú need.Alex
On 15 June 2015 at 13:34, Raj Patel <rajah...@googlemail.com <javascript:> wrote:
hi,
i have a toroid in a device that runs of USA power. Sometimes there is a
way to cut the primary/secondary windings and reconfigure but this doesn’t
have it. So, i think i need to replace it for 240v. Anyone know about this?–
You received this message because you are subscribed to the Google Groups
“Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an
email to hacman+un...@googlegroups.com <javascript:>.
To post to this group, send email to hac...@googlegroups.com
<javascript:>.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.
Raised traces means the unit got hot when in use not necessarily
over-volted. Sounds more likely that the traces were not designed for the
amount of current required…
I believe you would be ok to replace that toroid with a 230Vac to 15Vac

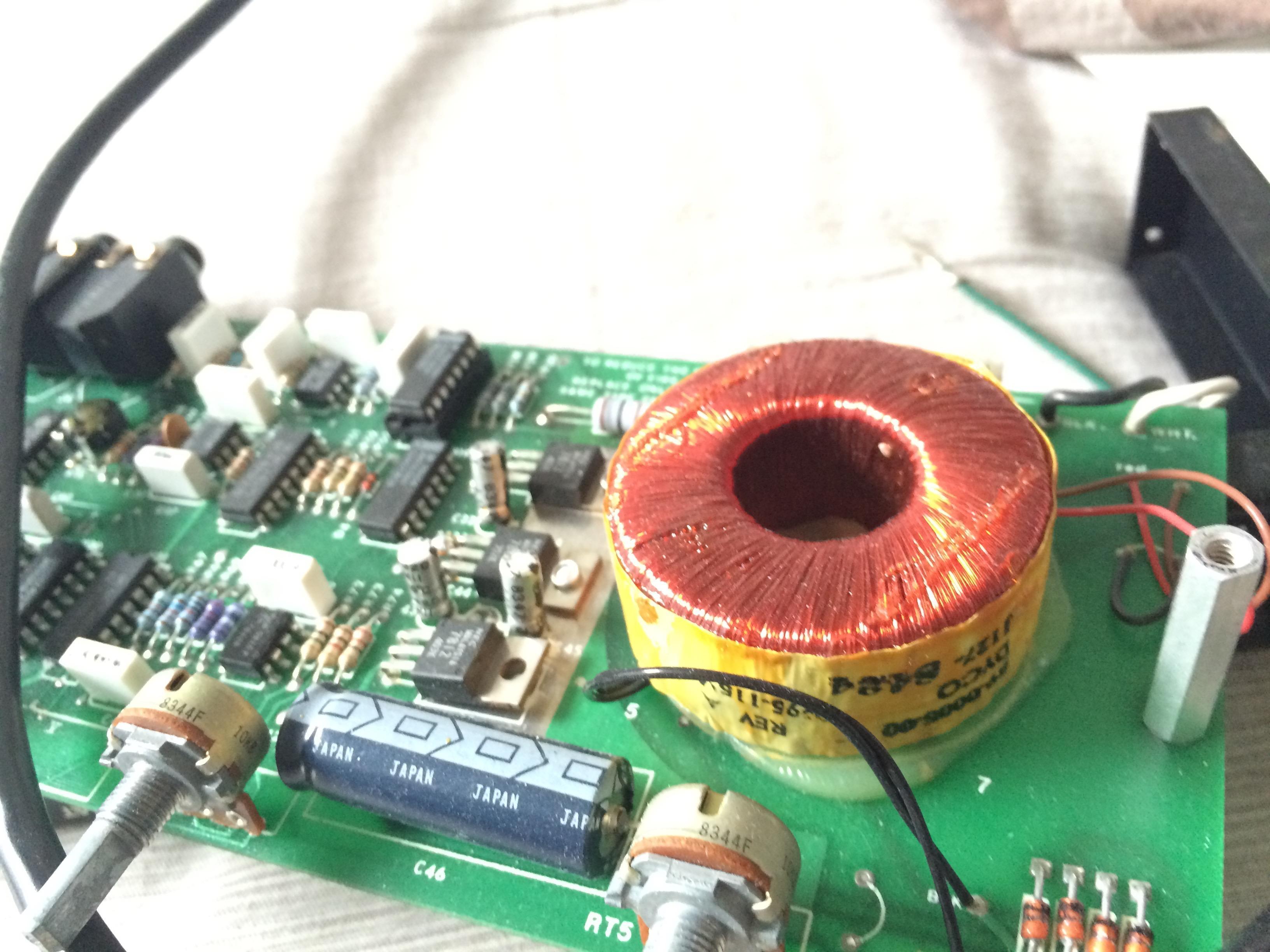

toroidal transformer. Make sure you select one with the same rough
