[image: Inline images 1]
[image: Inline images 4]
Alan Burlison
Impressive!
----- Reply message -----From: “Alan Burlison” alan.burlison@gmail.com
To: "hacman@googlegroups.com" hacman@googlegroups.com
Subject: [HACMan] For Alex, who didn’t believe…
Date: Fri, Jan 25, 2013 00:33
Alan Burlison
You received this message because you are subscribed to the Google Groups “HAC:Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an email to hacman+unsubscribe@googlegroups.com.
To post to this group, send an email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman?hl=en-GB.
For more options, visit https://groups.google.com/groups/opt_out.
Impressive!
If we ever do any workshop days it might be something to add to the list
of projects?
Alan Burlison
Alan,
And what are we looking at?!
For those of us who weren’t involved with the original conversation between
the two of you…
Ian.
Ian Norton
Co-Leader North West England Perl Mongers (http://northwestengland.pm.org/)
Member of The Perl Foundation Marketing Committee (
http://www.perlfoundation.org/)
Member of FLOSS UK Council (http://www.flossuk.org/)
And what are we looking at?!
For those of us who weren’t involved with the original conversation between
the two of you…

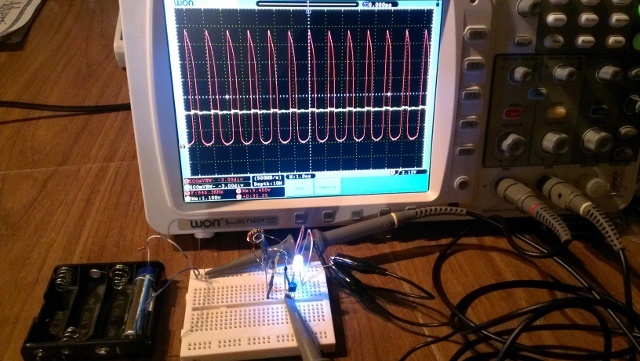

A Joule Thief. Basically it’s a primitive flyback boost converter that
allows you to run a LED off a 1.5V battery that otherwise would be
classed as dead - they can work down to 0.5V or below depending on how

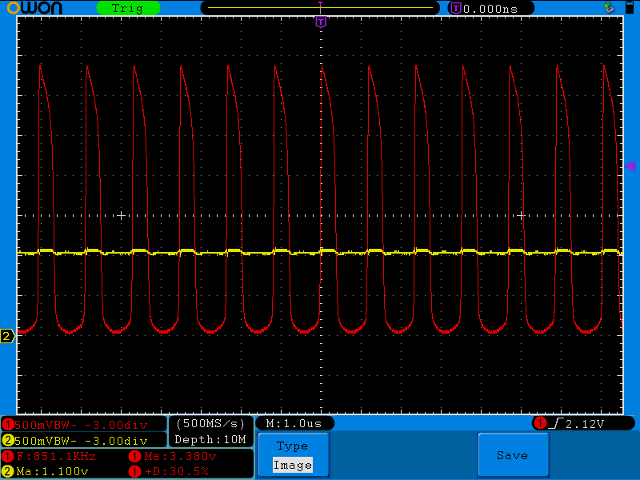

well made they are made (i.e. not this one ;-). The scope trace shows an
input voltage of 1.1V but if you put the battery in a torch it doesn’t
even glow. The output is a 850Khz 3.4V waveform with a 30% duty cycle
that’s enough to light a LED at a reasonable brightness.
Alex, I found some info on the intertubes that suggested sticking a 10nf
cap from between the resistor/coil junction and ground. The one I used
is a honking big mains-rated one but adding it pushes the frequency up
from 550Khz to 850khz, increases the duty cycle and the peak output
voltage so the LED is noticeably brighter. The circuit works OK without
it but it does make an improvement. There’s that and a whole load of
other plumbing detail
at
http://www.talkingelectronics.com/projects/LEDTorchCircuits/LEDTorchCircuits-P1.html
Alan Burlison
Alex, I found some info on the intertubes that suggested sticking a 10nf
cap from between the resistor/coil junction and ground. The one I used
is a honking big mains-rated one but adding it pushes the frequency up
from 550Khz to 850khz, increases the duty cycle and the peak output
voltage so the LED is noticeably brighter. The circuit works OK without
it but it does make an improvement.
Interestingly, if I use 2 nearly-dead AAs in series without the 10pF cap
being there it doesn’t work at all. Haven’t stuck it on the scope yet to
find out why.
Alan Burlison
