hi,
i think i need to get some parts from Mouser, that are not available from
Farnell, CPC, Conrad, RS etc. anyone want in?
separately, anyone got an LM323k or A or tried the new SPMS version someone
has put together? Anyone who uses 5v 3a linear will understand what i am
talking about, you find them in pinball machines c.1978-83.
The problem with the LM232k is the T03 package which is difficult to deal
with. The package needs significant heatsinking and the pins need
isolating carefully. It would probably be easier to just use a switch-mode
module which performs the same function - more efficient and easier to
use…
Not sure if there is anything I need from Mouser at the moment…
Cheers
AlexOn 13 September 2015 at 15:15, Raj Patel rajahpatel@googlemail.com wrote:
hi,
i think i need to get some parts from Mouser, that are not available from
Farnell, CPC, Conrad, RS etc. anyone want in?
separately, anyone got an LM323k or A or tried the new SPMS version
someone has put together? Anyone who uses 5v 3a linear will understand
what i am talking about, you find them in pinball machines c.1978-83.–
You received this message because you are subscribed to the Google Groups
"Hackspace Manchester" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.
i think thats right Alex and so i was in two minds to purchase the new SMPS version which is the same size etc. The heatsink on the device is substantial but i still think its operating at border line.
has anyone bought the SMPS, lm323 shape module, from the states or failing that can any recommend a really small smps, i do not have awful lot of room to play with and there is already a transformer in there.> On 13 Sep 2015, at 15:55, Alexander Lang alexanderlang1980@gmail.com wrote:
The problem with the LM232k is the T03 package which is difficult to deal with. The package needs significant heatsinking and the pins need isolating carefully. It would probably be easier to just use a switch-mode module which performs the same function - more efficient and easier to use…
Not sure if there is anything I need from Mouser at the moment…
Cheers
Alex
On 13 September 2015 at 15:15, Raj Patel <rajahpatel@googlemail.com mailto:rajahpatel@googlemail.com> wrote:
hi,
i think i need to get some parts from Mouser, that are not available from Farnell, CPC, Conrad, RS etc. anyone want in?
separately, anyone got an LM323k or A or tried the new SPMS version someone has put together? Anyone who uses 5v 3a linear will understand what i am talking about, you find them in pinball machines c.1978-83.–
You received this message because you are subscribed to the Google Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.
Raj,
If you add a heatsink to the switching regulator this module will do what
you want. Is the output from the transformer rectified? It should be if
you were feeding it to the input of an LM232…
Cheers
AlexOn 13 September 2015 at 16:00, ‘Raj Patel’ via Hackspace Manchester < hacman@googlegroups.com> wrote:
i think thats right Alex and so i was in two minds to purchase the new
SMPS version which is the same size etc. The heatsink on the device is
substantial but i still think its operating at border line.has anyone bought the SMPS, lm323 shape module, from the states or failing
that can any recommend a really small smps, i do not have awful lot of room
to play with and there is already a transformer in there.On 13 Sep 2015, at 15:55, Alexander Lang alexanderlang1980@gmail.com wrote:
The problem with the LM232k is the T03 package which is difficult to deal
with. The package needs significant heatsinking and the pins need
isolating carefully. It would probably be easier to just use a switch-mode
module which performs the same function - more efficient and easier to
use…Not sure if there is anything I need from Mouser at the moment…
Cheers
Alex
On 13 September 2015 at 15:15, Raj Patel rajahpatel@googlemail.com wrote:
hi,
i think i need to get some parts from Mouser, that are not available from
Farnell, CPC, Conrad, RS etc. anyone want in?
separately, anyone got an LM323k or A or tried the new SPMS version
someone has put together? Anyone who uses 5v 3a linear will understand
what i am talking about, you find them in pinball machines c.1978-83.–
You received this message because you are subscribed to the Google Groups
“Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an
email to hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the
Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit
https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to
hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google Groups
“Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an
email to hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.
hi,
yes rectified via Bridge from transformer secondary.
this is much cheaper than slapping a traco enclosed module to the back too.
plenty of space on the back to situate a heatsink once i remove the old one.> On 13 Sep 2015, at 16:04, Alexander Lang alexanderlang1980@gmail.com wrote:
Raj,
If you add a heatsink to the switching regulator this module will do what you want. Is the output from the transformer rectified? It should be if you were feeding it to the input of an LM232…
http://hobbycomponents.com/power/215-lm2596-dc-dc-3-35v-adjustable-step-down-power-supply-module http://hobbycomponents.com/power/215-lm2596-dc-dc-3-35v-adjustable-step-down-power-supply-module
Cheers
Alex
On 13 September 2015 at 16:00, ‘Raj Patel’ via Hackspace Manchester <hacman@googlegroups.com mailto:hacman@googlegroups.com> wrote:
i think thats right Alex and so i was in two minds to purchase the new SMPS version which is the same size etc. The heatsink on the device is substantial but i still think its operating at border line.has anyone bought the SMPS, lm323 shape module, from the states or failing that can any recommend a really small smps, i do not have awful lot of room to play with and there is already a transformer in there.
On 13 Sep 2015, at 15:55, Alexander Lang <alexanderlang1980@gmail.com mailto:alexanderlang1980@gmail.com> wrote:
The problem with the LM232k is the T03 package which is difficult to deal with. The package needs significant heatsinking and the pins need isolating carefully. It would probably be easier to just use a switch-mode module which performs the same function - more efficient and easier to use…
Not sure if there is anything I need from Mouser at the moment…
Cheers
Alex
On 13 September 2015 at 15:15, Raj Patel <rajahpatel@googlemail.com mailto:rajahpatel@googlemail.com> wrote:
hi,
i think i need to get some parts from Mouser, that are not available from Farnell, CPC, Conrad, RS etc. anyone want in?
separately, anyone got an LM323k or A or tried the new SPMS version someone has put together? Anyone who uses 5v 3a linear will understand what i am talking about, you find them in pinball machines c.1978-83.–
You received this message because you are subscribed to the Google Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.
What is the 5 Vdc supply for? The output from that module is not
particularly electrically quiet. If it is to power an audio or analogue
section it might need some filtering…
AlexOn 13 September 2015 at 16:15, ‘Raj Patel’ via Hackspace Manchester < hacman@googlegroups.com> wrote:
hi,
yes rectified via Bridge from transformer secondary.this is much cheaper than slapping a traco enclosed module to the back
too.plenty of space on the back to situate a heatsink once i remove the old
one.On 13 Sep 2015, at 16:04, Alexander Lang alexanderlang1980@gmail.com wrote:
Raj,
If you add a heatsink to the switching regulator this module will do what
you want. Is the output from the transformer rectified? It should be if
you were feeding it to the input of an LM232…http://hobbycomponents.com/power/215-lm2596-dc-dc-3-35v-adjustable-step-down-power-supply-module
Cheers
Alex
On 13 September 2015 at 16:00, ‘Raj Patel’ via Hackspace Manchester < hacman@googlegroups.com> wrote:
i think thats right Alex and so i was in two minds to purchase the new
SMPS version which is the same size etc. The heatsink on the device is
substantial but i still think its operating at border line.has anyone bought the SMPS, lm323 shape module, from the states or
failing that can any recommend a really small smps, i do not have awful lot
of room to play with and there is already a transformer in there.On 13 Sep 2015, at 15:55, Alexander Lang alexanderlang1980@gmail.com wrote:
The problem with the LM232k is the T03 package which is difficult to deal
with. The package needs significant heatsinking and the pins need
isolating carefully. It would probably be easier to just use a switch-mode
module which performs the same function - more efficient and easier to
use…Not sure if there is anything I need from Mouser at the moment…
Cheers
Alex
On 13 September 2015 at 15:15, Raj Patel rajahpatel@googlemail.com wrote:
hi,
i think i need to get some parts from Mouser, that are not available
from Farnell, CPC, Conrad, RS etc. anyone want in?
separately, anyone got an LM323k or A or tried the new SPMS version
someone has put together? Anyone who uses 5v 3a linear will understand
what i am talking about, you find them in pinball machines c.1978-83.–
You received this message because you are subscribed to the Google
Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send
an email to hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the
Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit
https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to
hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google Groups
“Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an
email to hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the
Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit
https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to
hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google Groups
“Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an
email to hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.
hi alex,
separate LDO for analog audio 15/-15 so thats no issue and i am always painfully aware of this. 5vdc is for a load of ttl and some bipolars.
there is some filtering already but i think 5vdc via some form of smps is the way to go.> On 13 Sep 2015, at 16:22, Alexander Lang alexanderlang1980@gmail.com wrote:
What is the 5 Vdc supply for? The output from that module is not particularly electrically quiet. If it is to power an audio or analogue section it might need some filtering…
Alex
On 13 September 2015 at 16:15, ‘Raj Patel’ via Hackspace Manchester <hacman@googlegroups.com mailto:hacman@googlegroups.com> wrote:
hi,
yes rectified via Bridge from transformer secondary.this is much cheaper than slapping a traco enclosed module to the back too.
plenty of space on the back to situate a heatsink once i remove the old one.

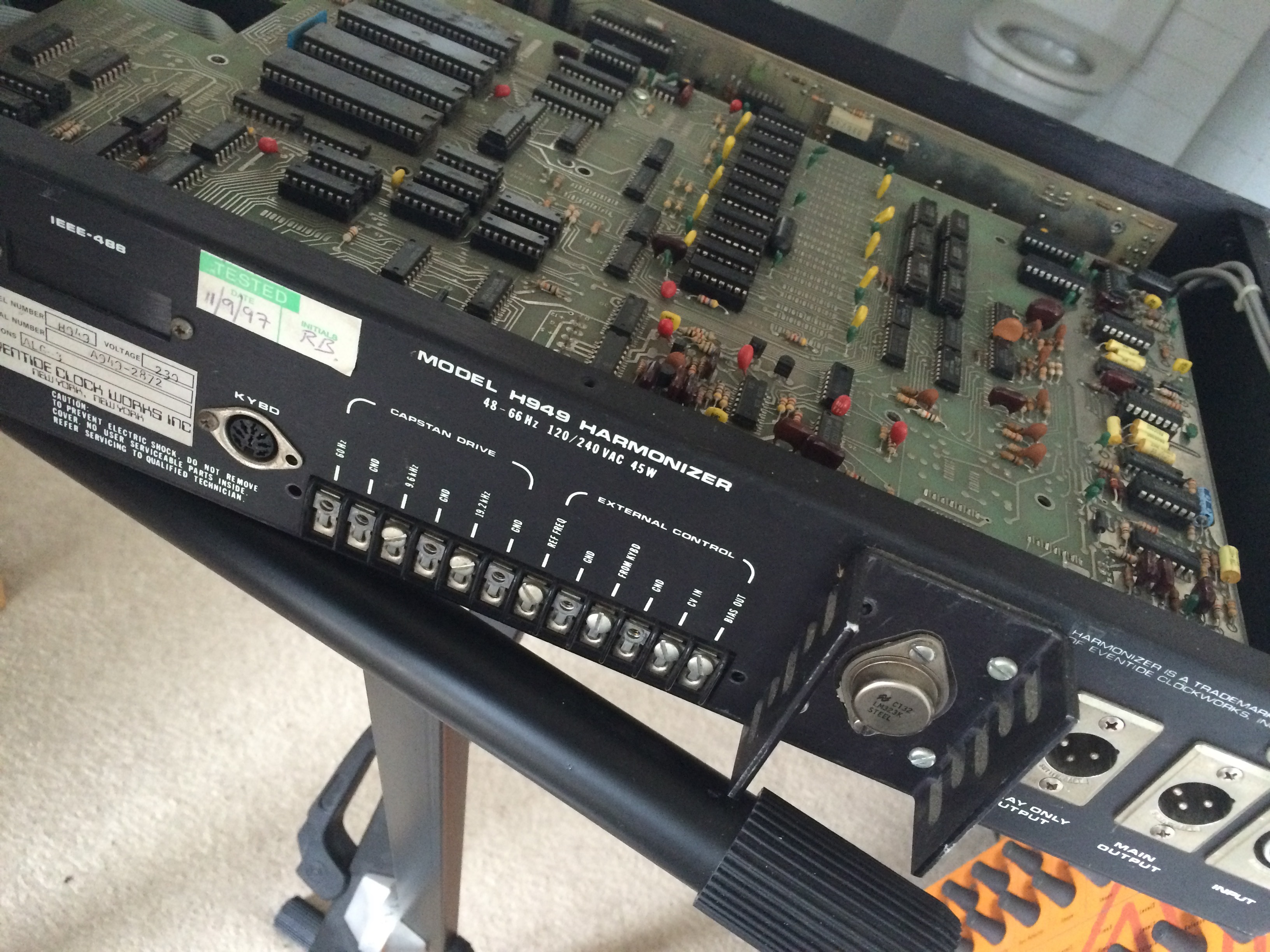

<IMG_2039.jpg>On 13 Sep 2015, at 16:04, Alexander Lang <alexanderlang1980@gmail.com mailto:alexanderlang1980@gmail.com> wrote:
Raj,
If you add a heatsink to the switching regulator this module will do what you want. Is the output from the transformer rectified? It should be if you were feeding it to the input of an LM232…
http://hobbycomponents.com/power/215-lm2596-dc-dc-3-35v-adjustable-step-down-power-supply-module http://hobbycomponents.com/power/215-lm2596-dc-dc-3-35v-adjustable-step-down-power-supply-module
Cheers
Alex
On 13 September 2015 at 16:00, ‘Raj Patel’ via Hackspace Manchester <hacman@googlegroups.com mailto:hacman@googlegroups.com> wrote:
i think thats right Alex and so i was in two minds to purchase the new SMPS version which is the same size etc. The heatsink on the device is substantial but i still think its operating at border line.has anyone bought the SMPS, lm323 shape module, from the states or failing that can any recommend a really small smps, i do not have awful lot of room to play with and there is already a transformer in there.
On 13 Sep 2015, at 15:55, Alexander Lang <alexanderlang1980@gmail.com mailto:alexanderlang1980@gmail.com> wrote:
The problem with the LM232k is the T03 package which is difficult to deal with. The package needs significant heatsinking and the pins need isolating carefully. It would probably be easier to just use a switch-mode module which performs the same function - more efficient and easier to use…
Not sure if there is anything I need from Mouser at the moment…
Cheers
Alex
On 13 September 2015 at 15:15, Raj Patel <rajahpatel@googlemail.com mailto:rajahpatel@googlemail.com> wrote:
hi,
i think i need to get some parts from Mouser, that are not available from Farnell, CPC, Conrad, RS etc. anyone want in?
separately, anyone got an LM323k or A or tried the new SPMS version someone has put together? Anyone who uses 5v 3a linear will understand what i am talking about, you find them in pinball machines c.1978-83.–
You received this message because you are subscribed to the Google Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.
All good then…Hope I’ve helped.On 13 September 2015 at 16:24, ‘Raj Patel’ via Hackspace Manchester < hacman@googlegroups.com> wrote:
hi alex,
separate LDO for analog audio 15/-15 so thats no issue and i am always
painfully aware of this. 5vdc is for a load of ttl and some bipolars.there is some filtering already but i think 5vdc via some form of smps is
the way to go.On 13 Sep 2015, at 16:22, Alexander Lang alexanderlang1980@gmail.com wrote:
What is the 5 Vdc supply for? The output from that module is not
particularly electrically quiet. If it is to power an audio or analogue
section it might need some filtering…Alex
On 13 September 2015 at 16:15, ‘Raj Patel’ via Hackspace Manchester < hacman@googlegroups.com> wrote:
hi,
yes rectified via Bridge from transformer secondary.this is much cheaper than slapping a traco enclosed module to the back
too.plenty of space on the back to situate a heatsink once i remove the old
one.
<IMG_2039.jpg>On 13 Sep 2015, at 16:04, Alexander Lang alexanderlang1980@gmail.com wrote:
Raj,
If you add a heatsink to the switching regulator this module will do what
you want. Is the output from the transformer rectified? It should be if
you were feeding it to the input of an LM232…http://hobbycomponents.com/power/215-lm2596-dc-dc-3-35v-adjustable-step-down-power-supply-module
Cheers
Alex
On 13 September 2015 at 16:00, ‘Raj Patel’ via Hackspace Manchester < hacman@googlegroups.com> wrote:
i think thats right Alex and so i was in two minds to purchase the new
SMPS version which is the same size etc. The heatsink on the device is
substantial but i still think its operating at border line.has anyone bought the SMPS, lm323 shape module, from the states or
failing that can any recommend a really small smps, i do not have awful lot
of room to play with and there is already a transformer in there.On 13 Sep 2015, at 15:55, Alexander Lang alexanderlang1980@gmail.com wrote:
The problem with the LM232k is the T03 package which is difficult to
deal with. The package needs significant heatsinking and the pins need
isolating carefully. It would probably be easier to just use a switch-mode
module which performs the same function - more efficient and easier to
use…Not sure if there is anything I need from Mouser at the moment…
Cheers
Alex
On 13 September 2015 at 15:15, Raj Patel rajahpatel@googlemail.com wrote:
hi,
i think i need to get some parts from Mouser, that are not available
from Farnell, CPC, Conrad, RS etc. anyone want in?
separately, anyone got an LM323k or A or tried the new SPMS version
someone has put together? Anyone who uses 5v 3a linear will understand
what i am talking about, you find them in pinball machines c.1978-83.–
You received this message because you are subscribed to the Google
Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send
an email to hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the
Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit
https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to
hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google
Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send
an email to hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the
Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit
https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to
hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google Groups
"Hackspace Manchester" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the
Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit
https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to
hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google Groups
"Hackspace Manchester" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout.
great ideas, i’ll think it through and come back. thanks
when space is not an issue i tend to drop huge plate of metal on to a steel can regulator but things are tight with this particular unit.> On 13 Sep 2015, at 16:25, Alexander Lang alexanderlang1980@gmail.com wrote:
All good then…Hope I’ve helped.
On 13 September 2015 at 16:24, ‘Raj Patel’ via Hackspace Manchester <hacman@googlegroups.com mailto:hacman@googlegroups.com> wrote:
hi alex,separate LDO for analog audio 15/-15 so thats no issue and i am always painfully aware of this. 5vdc is for a load of ttl and some bipolars.
there is some filtering already but i think 5vdc via some form of smps is the way to go.
On 13 Sep 2015, at 16:22, Alexander Lang <alexanderlang1980@gmail.com mailto:alexanderlang1980@gmail.com> wrote:
What is the 5 Vdc supply for? The output from that module is not particularly electrically quiet. If it is to power an audio or analogue section it might need some filtering…
Alex
On 13 September 2015 at 16:15, ‘Raj Patel’ via Hackspace Manchester <hacman@googlegroups.com mailto:hacman@googlegroups.com> wrote:
hi,
yes rectified via Bridge from transformer secondary.this is much cheaper than slapping a traco enclosed module to the back too.
plenty of space on the back to situate a heatsink once i remove the old one.
<IMG_2039.jpg>On 13 Sep 2015, at 16:04, Alexander Lang <alexanderlang1980@gmail.com mailto:alexanderlang1980@gmail.com> wrote:
Raj,
If you add a heatsink to the switching regulator this module will do what you want. Is the output from the transformer rectified? It should be if you were feeding it to the input of an LM232…
http://hobbycomponents.com/power/215-lm2596-dc-dc-3-35v-adjustable-step-down-power-supply-module http://hobbycomponents.com/power/215-lm2596-dc-dc-3-35v-adjustable-step-down-power-supply-module
Cheers
Alex
On 13 September 2015 at 16:00, ‘Raj Patel’ via Hackspace Manchester <hacman@googlegroups.com mailto:hacman@googlegroups.com> wrote:
i think thats right Alex and so i was in two minds to purchase the new SMPS version which is the same size etc. The heatsink on the device is substantial but i still think its operating at border line.has anyone bought the SMPS, lm323 shape module, from the states or failing that can any recommend a really small smps, i do not have awful lot of room to play with and there is already a transformer in there.
On 13 Sep 2015, at 15:55, Alexander Lang <alexanderlang1980@gmail.com mailto:alexanderlang1980@gmail.com> wrote:
The problem with the LM232k is the T03 package which is difficult to deal with. The package needs significant heatsinking and the pins need isolating carefully. It would probably be easier to just use a switch-mode module which performs the same function - more efficient and easier to use…
Not sure if there is anything I need from Mouser at the moment…
Cheers
Alex
On 13 September 2015 at 15:15, Raj Patel <rajahpatel@googlemail.com mailto:rajahpatel@googlemail.com> wrote:
hi,
i think i need to get some parts from Mouser, that are not available from Farnell, CPC, Conrad, RS etc. anyone want in?
separately, anyone got an LM323k or A or tried the new SPMS version someone has put together? Anyone who uses 5v 3a linear will understand what i am talking about, you find them in pinball machines c.1978-83.–
You received this message because you are subscribed to the Google Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to the Google Groups “Hackspace Manchester” group.
To unsubscribe from this group and stop receiving emails from it, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.–
You received this message because you are subscribed to a topic in the Google Groups “Hackspace Manchester” group.
To unsubscribe from this topic, visit https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe https://groups.google.com/d/topic/hacman/bsHHJ6fD18c/unsubscribe.
To unsubscribe from this group and all its topics, send an email to hacman+unsubscribe@googlegroups.com mailto:hacman+unsubscribe@googlegroups.com.
To post to this group, send email to hacman@googlegroups.com mailto:hacman@googlegroups.com.
Visit this group at http://groups.google.com/group/hacman http://groups.google.com/group/hacman.
For more options, visit https://groups.google.com/d/optout https://groups.google.com/d/optout.
