Hey Guys,
Been working on getting the circuit for the theremino kit for MHD sorted,
ive attached the eagle file and a png. can anyone see any obvious mistakes
/ cockups?
the tsl262 sensors are IR - voltage convertors, and very good at detecting
distance reliably and linearly between 10cm and 1m, they also only cost
£1.50 in quantity, so are perfect for this.
-Bob
theremenov1.sch (176 KB)
Oh, and yes, the LEDs are meant to be driven at a ridiculously high current!
they’ll only be on for milliseconds at a time.On 1 February 2011 23:05, Bob Clough parag0n@ivixor.net wrote:
Hey Guys,
Been working on getting the circuit for the theremino kit for MHD sorted,
ive attached the eagle file and a png. can anyone see any obvious mistakes
/ cockups?the tsl262 sensors are IR - voltage convertors, and very good at detecting
distance reliably and linearly between 10cm and 1m, they also only cost
£1.50 in quantity, so are perfect for this.-Bob
i would still put bigger resistors in for your LED’s or at least opt for
GaN based LEDs(blue, white etc) which have a higher forward voltage (and
also happen to be brighter for a given current) the little wires in your
led wont like having 100’s of mA going through them even for msOn Tue, 2011-02-01 at 23:07 +0000, Bob Clough wrote:
Oh, and yes, the LEDs are meant to be driven at a ridiculously high
current! they’ll only be on for milliseconds at a time.On 1 February 2011 23:05, Bob Clough parag0n@ivixor.net wrote:
Hey Guys,Been working on getting the circuit for the theremino kit for MHD sorted, ive attached the eagle file and a png. can anyone see any obvious mistakes / cockups? the tsl262 sensors are IR - voltage convertors, and very good at detecting distance reliably and linearly between 10cm and 1m, they also only cost £1.50 in quantity, so are perfect for this. -Bob–
You received this message because you are subscribed to the Google
Groups “HAC:Manchester” group.
To post to this group, send an email to hacman@googlegroups.com.
To unsubscribe from this group, send email to hacman
+unsubscribe@googlegroups.com.
For more options, visit this group at
http://groups.google.com/group/hacman?hl=en-GB.
This may be useful, although looks like you have the most of it, only
thing that i have spotted different is for some reason these guys have a
capacitor on the reset line and there regulator has one cap on the
input, one on the output.
hope its usefull for you
simonOn Tue, 2011-02-01 at 23:05 +0000, Bob Clough wrote:
Hey Guys,
Been working on getting the circuit for the theremino kit for MHD
sorted, ive attached the eagle file and a png. can anyone see any
obvious mistakes / cockups?the tsl262 sensors are IR - voltage convertors, and very good at
detecting distance reliably and linearly between 10cm and 1m, they
also only cost £1.50 in quantity, so are perfect for this.-Bob
–
You received this message because you are subscribed to the Google
Groups “HAC:Manchester” group.
To post to this group, send an email to hacman@googlegroups.com.
To unsubscribe from this group, send email to hacman
+unsubscribe@googlegroups.com.
For more options, visit this group at
http://groups.google.com/group/hacman?hl=en-GB.
I was going to mention the regulator feedback caps. There also should be a
smoothing cap too
This may be useful, although looks like you have the most of it, only
thing that i have spotted different is for some reason these guys have a
capacitor on the reset line and there regulator has one cap on the
input, one on the output.hope its usefull for you
simon
Hey Guys,
Been working on getting the circuit for the theremino kit for MHD
sorted, ive attached the eagle file and a png. can anyone see any
obvious mistakes / cockups?the tsl262 sensors are IR - voltage convertors, and very good at
detecting distance reliably and linearly between 10cm and 1m, they
also only cost £1.50 in quantity, so are perfect for this.-Bob
–
You received this message because you are subscribed to the Google
Groups “HAC:Manchester” group.
To post to this group, send an email to hacman@googlegroups.com.
To unsubscribe from this group, send email to hacman
+unsubscribe@googlegroups.com.
For more options, visit this group at
http://groups.google.com/group/hacman?hl=en-GB.–
You received this message because you are subscribed to the Google Groups
"HAC:Manchester" group.
To post to this group, send an email to hacman@googlegroups.com.
To unsubscribe from this group, send email to
hacman+unsubscribe@googlegroups.com hacman%2Bunsubscribe@googlegroups.com.
For more options, visit this group at
http://groups.google.com/group/hacman?hl=en-GB.
Bob,
Can you send me the original Eagle SCR file that you did for the theremino.
It will save me having to redraw it from scratch.
Regards
AlexOn Tue, Feb 1, 2011 at 11:05 PM, Bob Clough parag0n@ivixor.net wrote:
Hey Guys,
Been working on getting the circuit for the theremino kit for MHD sorted,
ive attached the eagle file and a png. can anyone see any obvious mistakes
/ cockups?the tsl262 sensors are IR - voltage convertors, and very good at detecting
distance reliably and linearly between 10cm and 1m, they also only cost
£1.50 in quantity, so are perfect for this.-Bob
–
You received this message because you are subscribed to the Google Groups
"HAC:Manchester" group.
To post to this group, send an email to hacman@googlegroups.com.
To unsubscribe from this group, send email to
hacman+unsubscribe@googlegroups.comhacman%2Bunsubscribe@googlegroups.com
.
For more options, visit this group at
http://groups.google.com/group/hacman?hl=en-GB.
It’s attached to the first email in this thread
Bob,
Can you send me the original Eagle SCR file that you did for the
theremino. It will save me having to redraw it from scratch.Regards
Alex
Hey Guys,
Been working on getting the circuit for the theremino kit for MHD sorted,
ive attached the eagle file and a png. can anyone see any obvious mistakes
/ cockups?the tsl262 sensors are IR - voltage convertors, and very good at
detecting distance reliably and linearly between 10cm and 1m, they also
only cost £1.50 in quantity, so are perfect for this.-Bob
–
You received this message because you are subscribed to the Google Groups
"HAC:Manchester" group.To post to this group, send an email to hacman@googlegroups.com.
To unsubscribe from this group, send email to
hacman+unsubscribe@googlegroups.com.For more options, visit this group at
http://groups.google.com/group/hacman?hl=en-GB.–
You received this message because you are subscribed to the Google Groups
"HAC:Manchester" group.
To post to this group, send an email to hacman@googlegroups.com.
To unsubscribe from this group, send email to
hacman+unsubscribe@googlegroups.com.
For more options, visit this group at
http://groups.google.com/group/hacman?hl=en-GB.
Hi Gents,

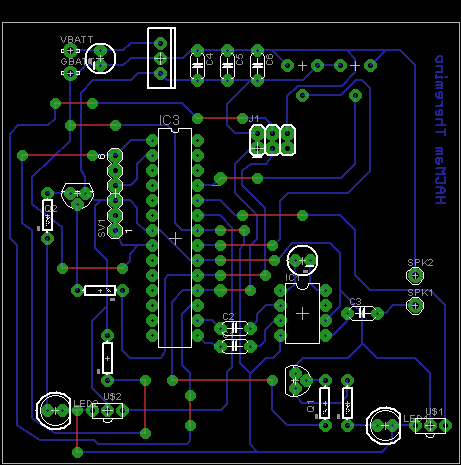

Been working on the Theremino Stuff for music hack day. I’ve never played
